Crafting a Resilient Web Architecture in AWS with Cloudairy Cloudchart

Introduction

In cloud computing, the design of a powerful and scalable architecture is important to make web applications reliable and performant. The 3-tier architecture pattern is one of the well-established patterns used for structuring cloud infrastructure. Let's dive into the core principles and practices behind designing a 3-tier web architecture on AWS and how Cloudairy Cloudchart can enhance this process.

Understanding the 3-Tier Architecture

The 3-tier architecture pattern divides the infrastructure into three distinct layers: the public layer, the application layer, and the database layer. Each layer serves a specific purpose in ensuring the security, scalability, and availability of the application.

• Public Layer
  This acts as the welcoming front door for users accessing your web application. Imagine it as a secure checkpoint. Public subnets, distributed across multiple Availability Zones within AWS, form this layer. This redundancy ensures high availability and minimizes downtime risks in case of failures in one zone.

• Application Layer
  Think of this layer as the bustling engine room. Residing in private subnets, it houses the core application logic and services responsible for processing user requests and generating responses. Security groups restrict access to this layer, ensuring only authorized traffic can interact with these critical components.

• Database Layer
  This layer serves as the secure vault for your application's valuable data. Here, you'll find Amazon RDS instances, a managed database service offered by AWS. Distributing these database resources across multiple Availability Zones safeguards your data integrity and enables failover capabilities in case of unexpected outages.

Achieving High Availability and Redundancy

A core strength of AWS is its ability to distribute applications across geographically separated Availability Zones. This design principle, incorporated into the 3-tier architecture, fosters high availability and fault tolerance. By segmenting your network into these three tiers and spreading resources across different zones, you can significantly mitigate the impact of hardware failures or localized disruptions. Even if one zone encounters an issue, your application can continue to operate seamlessly using resources in healthy zones.

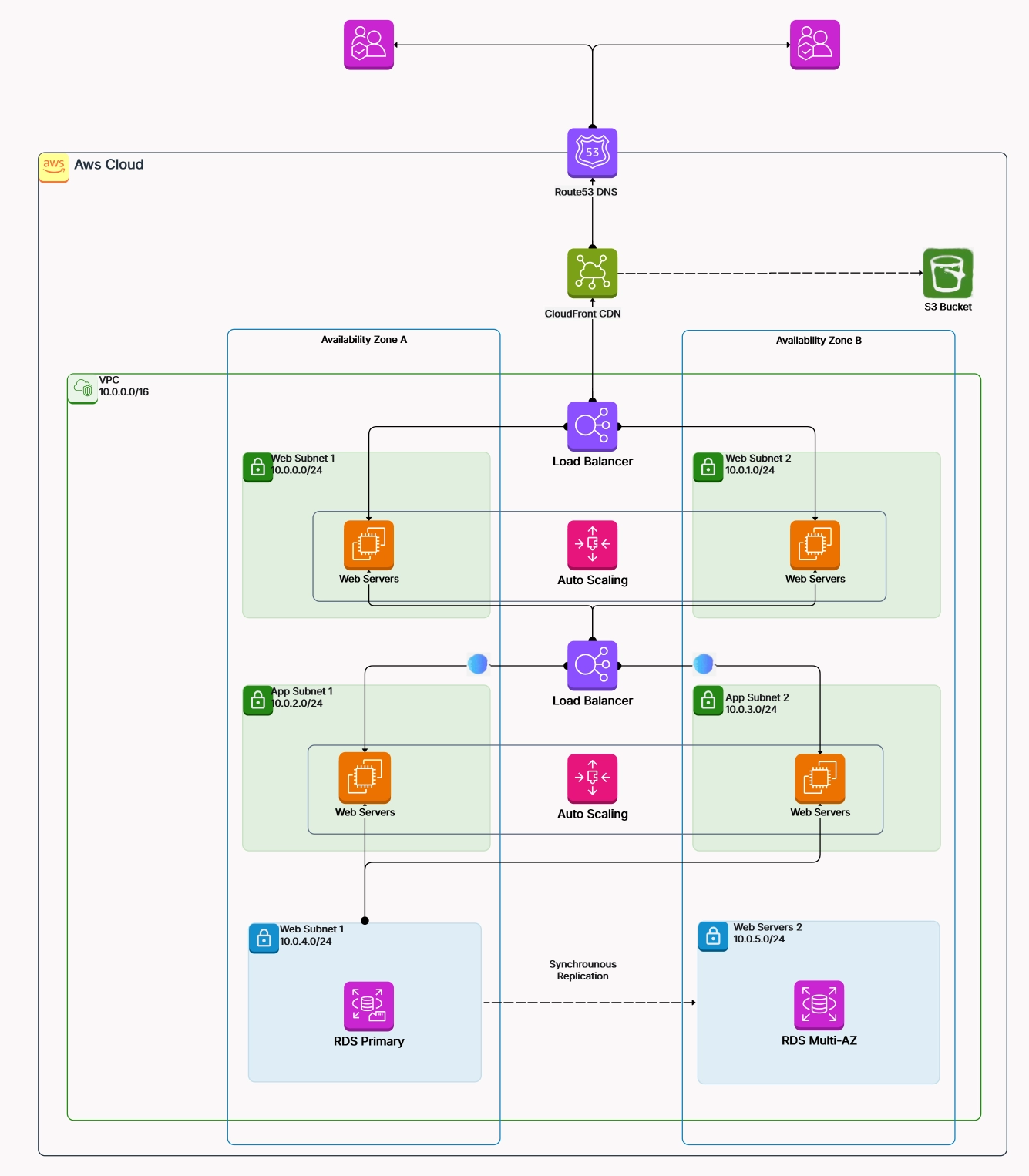

Key Components in Each Layer

• Public Layer: ELB (Elastic Load Balancer) acts as the central point of entry for user traffic. It efficiently distributes incoming requests across application servers residing in various Availability Zones. This ensures optimal performance and prevents any single server from becoming overloaded.

• Application Layer: Here, you might find web servers, application servers, and potentially a bastion host. The bastion host serves as a secure gateway, providing authorized personnel with SSH access for management and troubleshooting tasks within the private application layer.

• Database Layer: Amazon RDS offers a robust managed database service with built-in redundancy features. By utilizing Multi-AZ deployments, you can configure automatic failover to a replica instance in a separate Availability Zone if the primary database encounters an issue.

Implementing Best Practices for Scalability and Security

Creating a secure and scalable 3-tier architecture on AWS involves more than just choosing the right components. It's crucial to follow best practices for security, scalability, and performance optimization. AWS provides a wide range of services and features that can be used to build a resilient and efficient cloud infrastructure. Configuring security groups carefully is important to limit access and reduce the risk of attacks. Scaling can be achieved through autoscaling groups, allowing your infrastructure to automatically adjust resource allocation based on changing demands.

Benefits of the 3-Tier Architecture

• Enhanced Security: By segregating resources into distinct layers, you inherently improve security. Sensitive data is shielded within the private layers, and access controls can be granularly implemented.
• Improved Scalability: The modular nature of the 3-tier architecture makes scaling a breeze. Individual tiers can be scaled independently to accommodate surges in traffic or data storage requirements.
• High Availability: Distributing resources across multiple Availability Zones safeguards against outages or disruptions. This redundancy ensures your application remains available to users even in the face of localized failures.

Integrating Cloudairy Cloudchart for Effective Design and Collaboration

Cloudairy Cloudchart empowers architects to visually design and collaboratively refine 3-tier AWS architectures. Drag-and-drop pre-built shapes for AWS services (ELB, EC2, RDS) simplify the visual representation. Real-time collaboration ensures everyone is on the same page, while annotations capture design choices and security considerations. This centralized documentation streamlines the design process for a well-defined and secure 3-tier AWS architecture.

Conclusion

In conclusion, the 3-tier architecture provides a solid foundation for building secure, scalable, and resilient web applications on AWS. By understanding the purpose of each layer, implementing key components like ELBs and RDS, and adhering to security best practices, organizations can create a robust cloud infrastructure. Cloudairy Cloudchart further empowers architects by streamlining the design process with a visual workspace and collaborative features. Together, the 3-tier architecture and Cloudairy Cloudchart empower organizations to deliver high-performing web applications that meet the demands of today's dynamic digital landscape.
