What is an Azure architecture diagram — example showing Azure services connected in a hub-and-spoke pattern

What Is an Azure Architecture Diagram?

An Azure architecture diagram is a visual representation of your Microsoft Azure cloud infrastructure. It maps the relationships between Azure services — virtual machines, storage accounts, databases, networking components, and security boundaries — so that your team, stakeholders, and auditors can understand how your system is structured and how data flows through it.

Well-designed Azure diagrams use the official Azure icon set, clear subscription and resource-group boundaries, and standardized notation. They serve as the source of truth for architecture reviews, compliance documentation, onboarding, and change-management discussions.

Cloudairy's AI Azure Architecture Diagram Maker goes beyond static templates. Describe your architecture in plain English — "three-tier web app on App Service with Azure SQL and Azure Front Door" — and the AI produces a ready-to-edit diagram instantly. You can then layer in network topology, security groups, and region boundaries without starting from a blank canvas. Pair your Azure diagrams with an AI cloud architecture generator for multi-cloud views, or use the network diagram maker for detailed topology maps.

How to Make an Azure Architecture Diagram with Cloudairy

Go from idea to professional Azure diagram in four steps — no Visio license, no stencil download, and no Azure account hookup required.

1

Describe your Azure architecture

Type a plain-English description in the AI prompt box. For example: "Hub-and-spoke network with Azure Firewall, three spoke VNets, and an App Service in each spoke." Or choose one of the example prompt chips — landing zone, three-tier web app, Databricks pipeline, DevOps CI/CD.

2

Click Generate

Cloudairy's AI instantly builds the diagram using the official Azure icon set. Services are correctly shaped and labeled, connections reflect real traffic flows, and subscription or resource-group boxes are drawn automatically.

3

Customize — drag, drop, and annotate

Refine the AI-generated diagram in Cloudairy's editor. Drag services to rearrange layout, recolor resource groups, add annotation labels, insert security boundaries, or swap icons from the full Azure icon library covering Compute, Network, Storage, AI Foundry, Databricks, and Microsoft Fabric.

4

Export or share

Export to Visio (.vsdx), draw.io (.drawio), PNG, SVG, or PDF. Or copy a shareable live link for view-only or collaborative editing with your team — no account required for viewers.

How to make an Azure architecture diagram with Cloudairy — four steps from prompt to export

Start Building Your Azure Diagram Free

Join thousands of cloud architects, solutions engineers, and DevOps teams who use Cloudairy to create Azure architecture diagrams in seconds. Official icons. AI generation. Real-time collaboration.

Browse Azure Templates

Generate Azure Diagram with AI

No credit card required • Start creating in seconds

Why Use Cloudairy as Your Azure Architecture Diagram Tool

Cloudairy is the only tool that combines an AI prompt-to-diagram experience with the official Azure icon set, real-time collaboration, and frictionless Visio export — all on a single platform.

AI Prompt-to-Diagram

AI Prompt-to-Diagram

Describe your Azure architecture in natural language and get a complete, properly structured diagram in seconds. No templates to search, no shapes to drag from scratch. The AI understands Azure service relationships, network boundaries, and data flows.

Official Azure Icon Library

Official Azure Icon Library

Access 1,000+ official Microsoft Azure icons covering Compute, Networking, Storage, Databases, AI + Machine Learning, Analytics, Databricks, Microsoft Fabric, and more. No stencil download or plug-in required. Icons are always up-to-date.

Real-Time Collaboration

Real-Time Collaboration

Work on the same Azure diagram simultaneously with your team. Live cursor presence, inline comments, and @mentions keep architects, engineers, and stakeholders aligned. Share view-only or edit links with no account required for viewers.

Pre-Built Azure Templates

Pre-Built Azure Templates

Start from professionally designed templates for common Azure patterns: landing zones, hub-and-spoke networks, three-tier web apps, Databricks pipelines, DevOps CI/CD, and more. Each template is fully editable and AI-extendable.

Two-Way Import and Export

Two-Way Import & Export

Import existing diagrams from draw.io (.drawio) or Lucidchart. Export finished diagrams to Visio (.vsdx), draw.io (.drawio), PNG, SVG, or PDF. No lock-in — your diagrams stay portable across tools.

Version History and Sharing

Version History & Sharing

Track every change with full version history and branching. Roll back to any previous version, compare edits, and share specific diagram versions for architecture reviews. Shareable view-only links require no login from recipients.

Azure Architecture Diagram Templates

Start with a professionally designed Azure template and customize it for your environment. Each template is fully editable, AI-extendable, and ready to export.

Azure Landing Zone Architecture Diagram Template

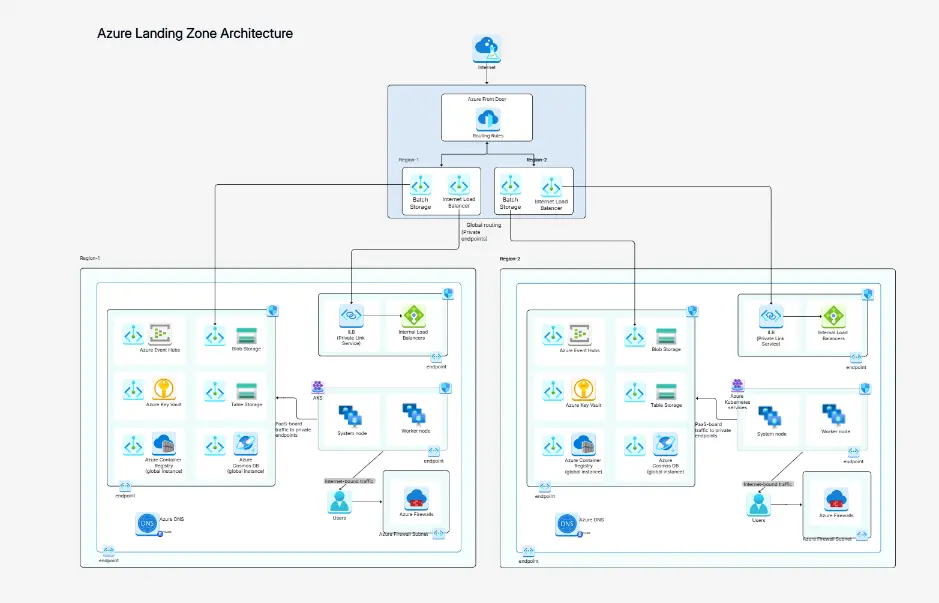

Azure Landing Zone Architecture

Use Template  →
Azure Databricks Architecture Diagram Template

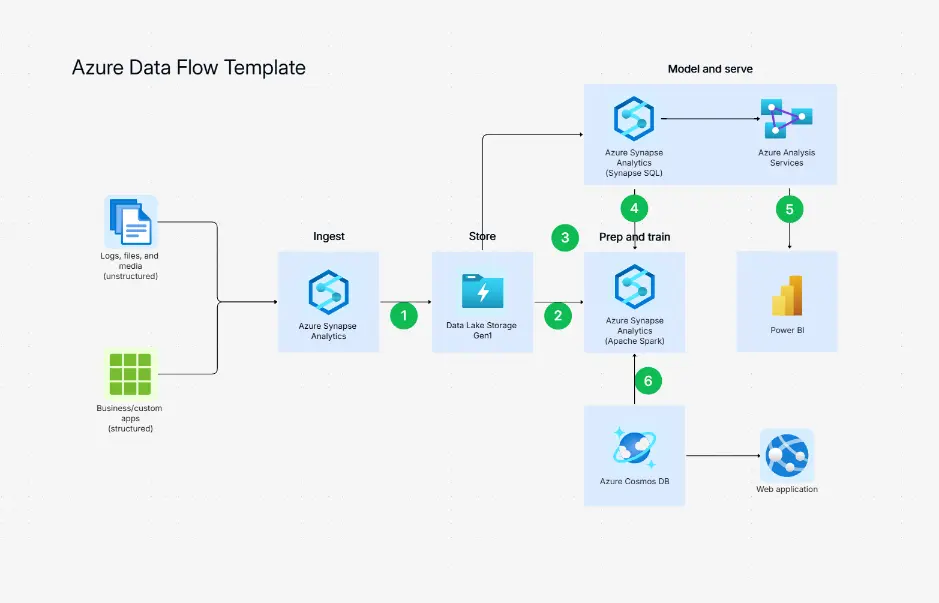

Azure Data Flow

Use Template  →
Azure Data Factory Architecture Diagram Template

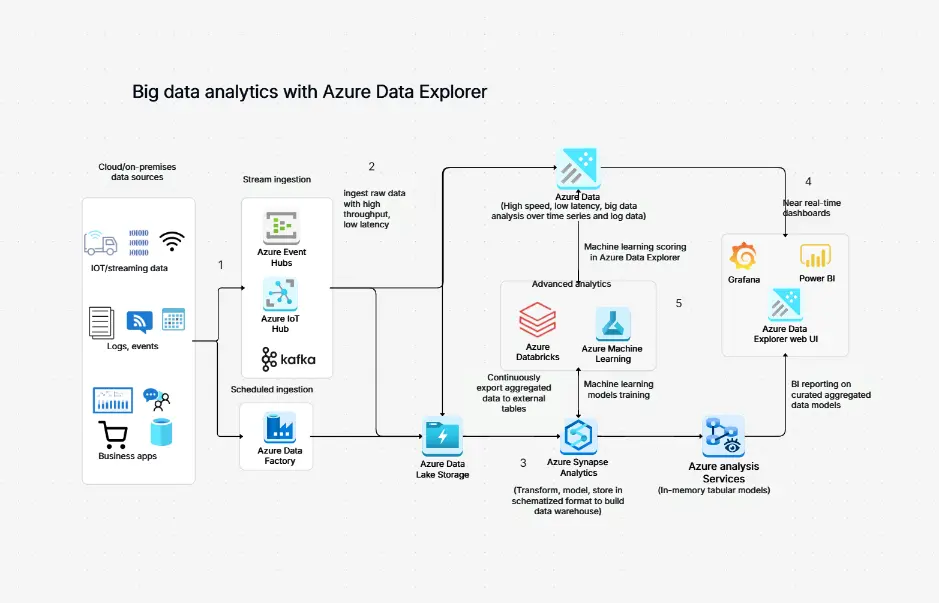

Big Data Analytics on Azure Explorer

Use Template  →
Azure DevOps Architecture Diagram Template

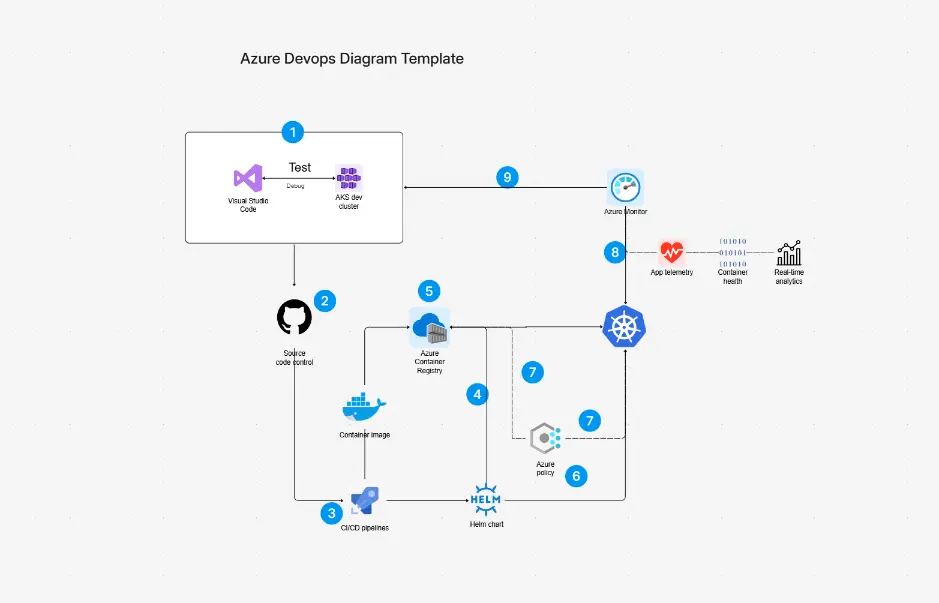

Azure Devops Diagram

Use Template  →
Azure Virtual Desktop Architecture Diagram Template

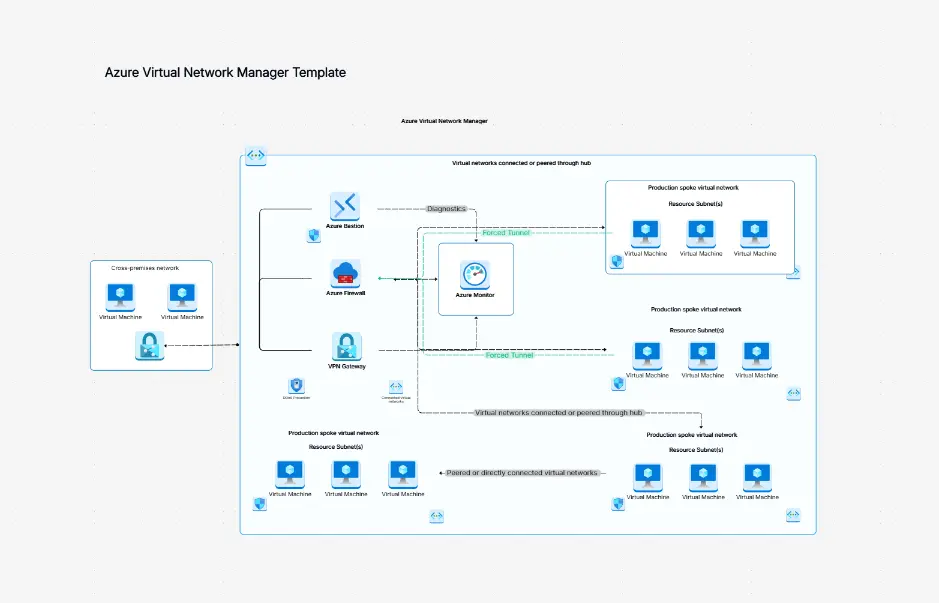

Azure Virtual Network Manager

Use Template  →
Azure AI Foundry Architecture Diagram Template

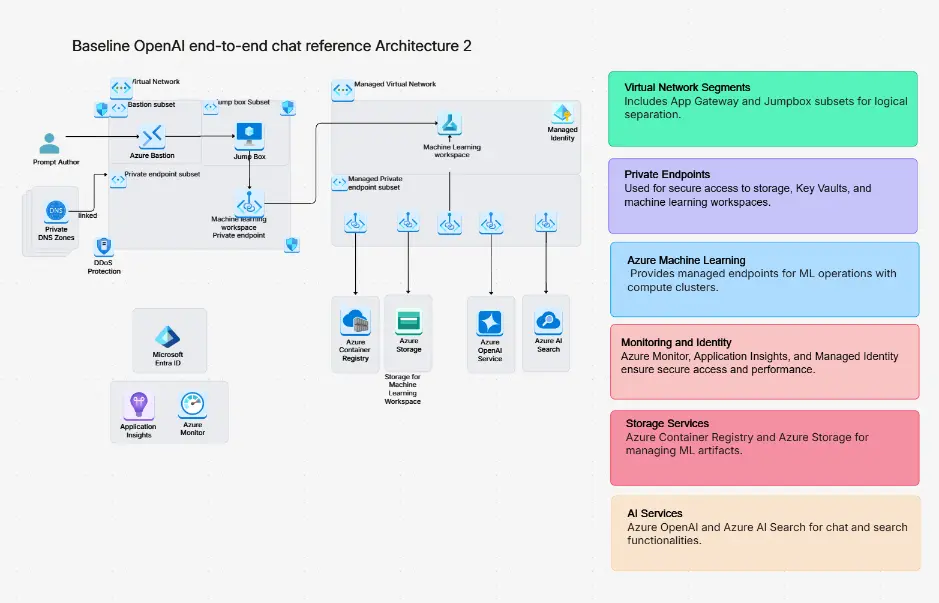

OpenAI Chat Reference Architecture

Use Template  →
Azure Hub-and-Spoke Network Diagram Template

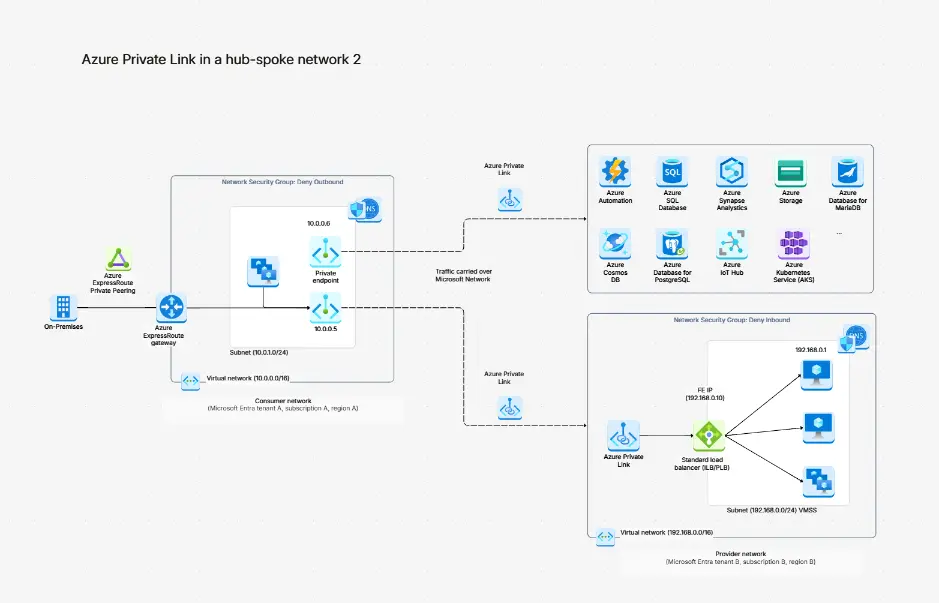

Azure Private Link Hub Spoke Network

Use Template  →
Microsoft Fabric Architecture Diagram Template

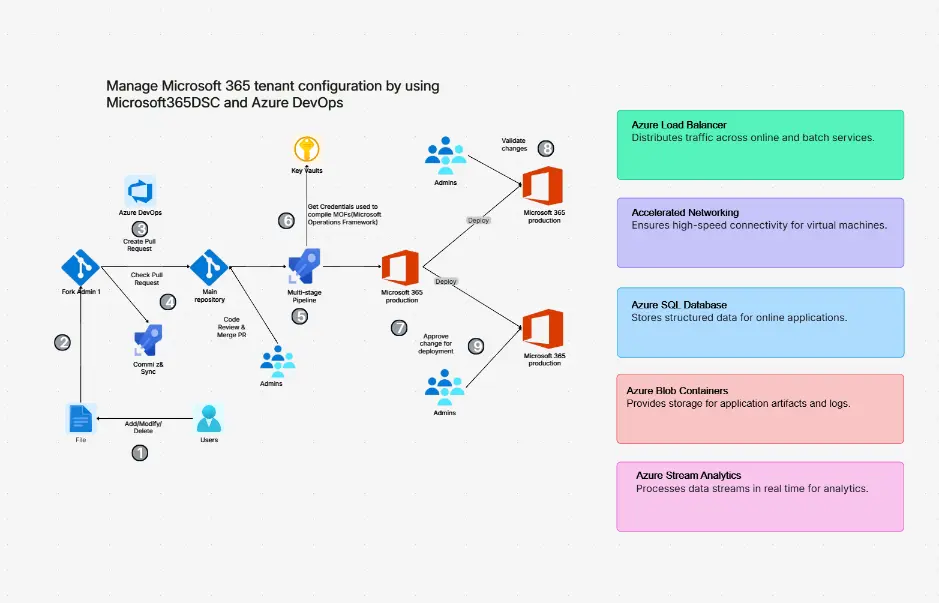

Microsoft 365 Tenant Configuration

Use Template  →

Cloudairy vs. Other Azure Diagram Tools

See how Cloudairy compares to the tools currently ranking for Azure architecture diagrams.

Capability Cloudairy Visio Lucidchart draw.io Eraser Hava
AI prompt → diagram Yes No Limited No Yes No
Official Azure icon set Yes Yes Yes Yes Partial Yes
Real-time collaboration Yes Limited Yes Limited Yes No
Export to Visio (.vsdx) Yes Native Yes Yes No No
No Azure account needed Yes Yes Yes Yes Yes No
Free tier available Yes No Limited Yes Yes No
Version history & branching Yes No Limited No No No

Who Uses Cloudairy for Azure Architecture Diagrams?

Cloud Architects

Design landing zones, reference architectures, and multi-subscription environments. Generate diagram drafts with AI, then refine in the editor and export to Visio for formal reviews.

DevOps & Platform Engineers

Document CI/CD pipelines, infrastructure-as-code deployments, and Azure DevOps workflows. Keep diagrams in sync with code using shareable live links and version history.

Solutions Engineers

Build client-facing Azure proposal diagrams quickly. The AI generates a complete architecture from a brief description so you spend time on the proposal, not the drawing.

Students & Certification Candidates

Prepare for AZ-104, AZ-305, and AZ-900 certification exams by visualizing Azure services and their relationships. Generate study diagrams from exam topics in seconds.

Consultants & Migration Specialists

Deliver Azure migration assessments with current-state and future-state architecture diagrams. Use the comparison layout to show before/after alongside cost and complexity trade-offs.

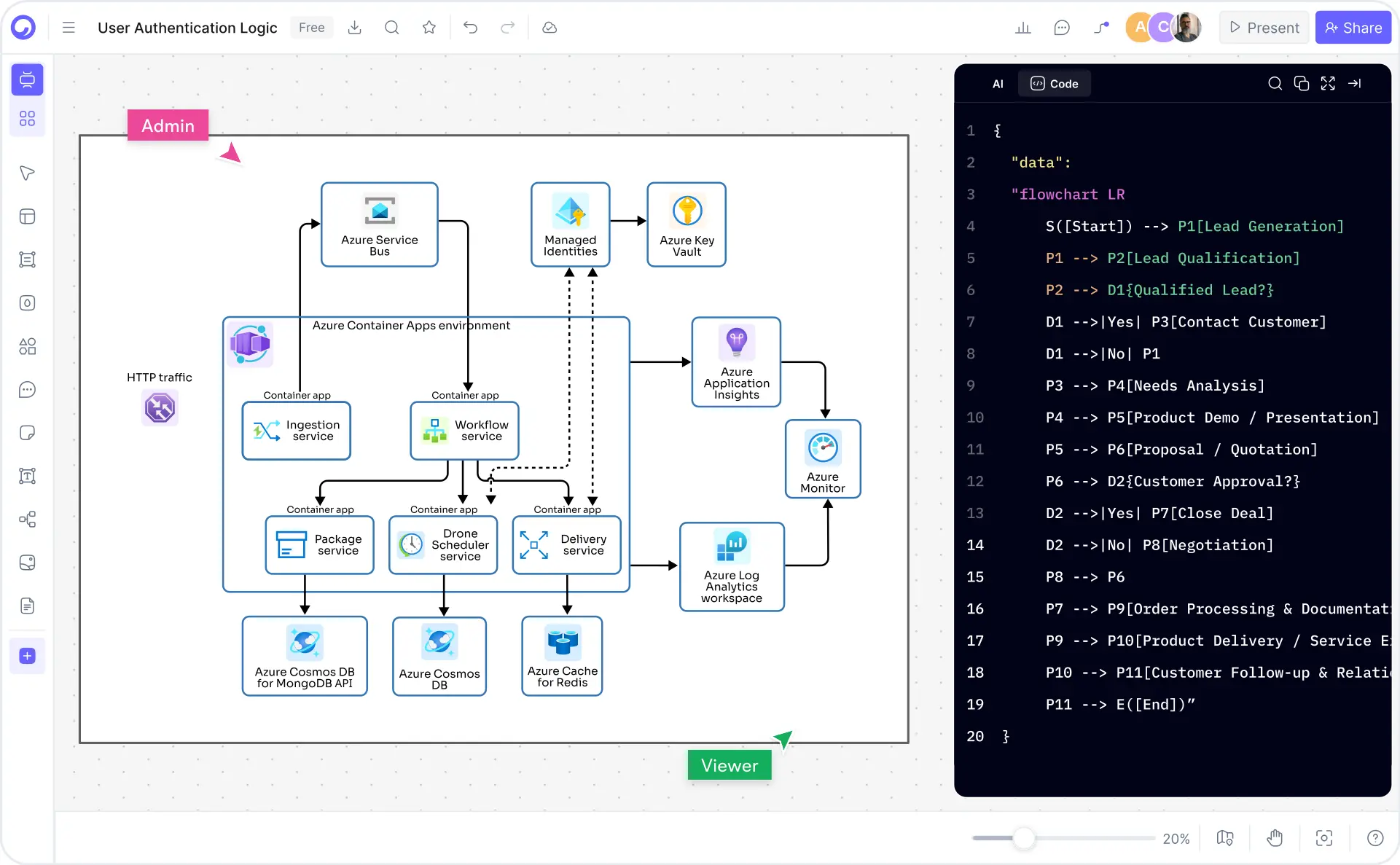

Cloud architects, DevOps engineers, and solutions engineers using Cloudairy for Azure architecture diagrams

Explore More Cloudairy AI Tools

AI Cloud Architecture Generator

AI Cloud Architecture Generator

Generate multi-cloud architecture diagrams for AWS, Azure, and GCP with 12,000+ built-in cloud icons and AI-assisted layout.

Learn more →
AI Flowchart Generator

AI Flowchart Generator

Turn text descriptions into professional flowcharts instantly. Map processes, decision logic, and workflows with AI-generated standardized diagrams.

Learn more →
AI UML Diagram Generator

AI UML Diagram Generator

Model software architecture with AI-generated class diagrams, sequence diagrams, component diagrams, and deployment diagrams.

Learn more →
Network Diagram Maker

Network Diagram Maker

Design detailed network topology diagrams with routers, switches, firewalls, and cloud endpoints. Ideal for Azure virtual network documentation.

Learn more →
AI ER Diagram Generator

AI ER Diagram Generator

Generate entity-relationship diagrams for Azure SQL, Cosmos DB, and other database services from plain English descriptions.

Learn more →

Frequently Asked Questions

Cloudairy is the best free AI-powered Azure architecture diagram maker. It combines an AI prompt-to-diagram experience with the official Azure icon set, real-time collaboration, and frictionless export to Visio and draw.io — capabilities no other top-ranked tool currently offers together in a single free product.

With Cloudairy: (1) Type your Azure architecture description into the AI prompt box. (2) Click Generate — Cloudairy builds the diagram with official Azure icons. (3) Customize using drag-and-drop. (4) Export to Visio, draw.io, PNG, SVG, or PDF, or share a live link with your team.

Yes. Cloudairy's free tier includes access to the AI Azure architecture diagram maker with the official Azure icon set and PNG export. Premium plans unlock Visio export (.vsdx), unlimited boards, and full team collaboration features.

Yes. Cloudairy includes 1,000+ official Microsoft Azure icons covering Compute, Networking, Storage, Databases, AI + Machine Learning, Databricks, Microsoft Fabric, and more. No plug-in or separate stencil download is required — icons are built directly into the editor.

Yes. Cloudairy supports two-way export to Visio (.vsdx) and draw.io (.drawio), plus PNG, SVG, and PDF. You can also import existing draw.io files into Cloudairy for editing. This provides a frictionless migration path for teams already using Visio or draw.io.

No. Cloudairy works entirely from a text prompt or a blank canvas — no Azure subscription, Azure account connection, or cloud permissions are required. This is a key advantage over tools like Hava and Cloudockit that require Azure account access to auto-generate diagrams.

The three foundational layers of Azure architecture are: (1) Compute — Virtual Machines, App Service, Azure Functions, AKS, Container Instances; (2) Networking — Virtual Networks, Load Balancers, Azure Firewall, Application Gateway, ExpressRoute, VPN Gateway; (3) Storage & Data — Azure Blob Storage, Azure SQL, Cosmos DB, Data Factory, and Azure Data Lake. All three layers are fully represented in Cloudairy's official Azure icon set.

Yes. Cloudairy supports hub-and-spoke network diagrams, virtual network topology diagrams, and full Azure infrastructure diagrams using the official Azure networking icon set — including Virtual Networks, Subnets, Network Security Groups, VPN Gateways, Azure Firewall, and ExpressRoute. You can also use Cloudairy's dedicated network diagram maker for more detailed topology work.
